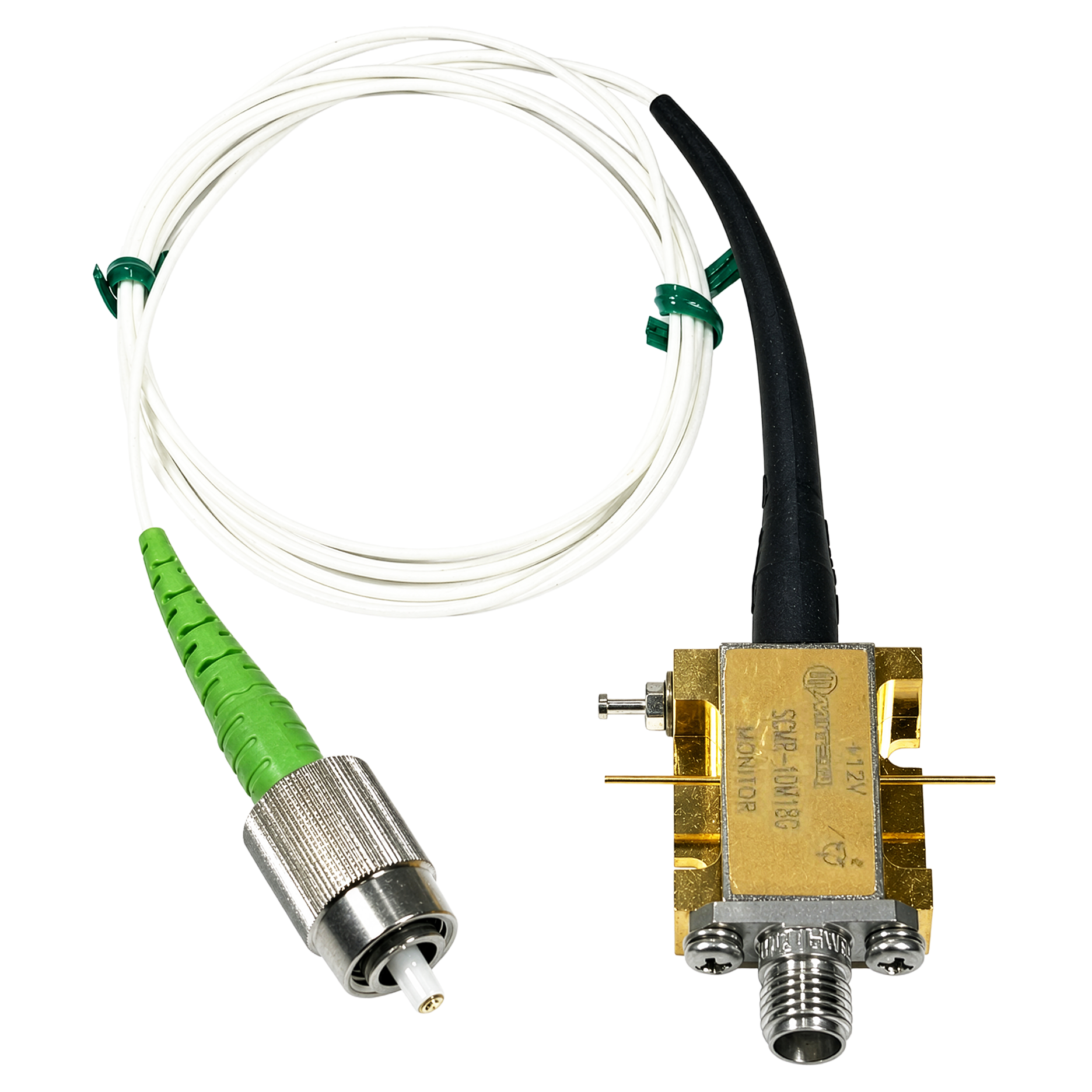

Fiber Optic Receivers

Fiber Optic ReceiversNarda-MITEQ offers low noise, high dynamic range Fiber Optic Receivers, that can be purchased as part of a full link or by itself for multi-point distribution network.

Our Fiber Optic Receivers employ high linearity PIN photo-diodes that can handle optical power levels of up to 10mW. The standard receivers are integrated with LNA and are available in broadband frequencies ranging from 5KHz to 20GHz.

Most Fiber Optic Receivers are powered by single supply voltage built with reverse polarity protection and come with a monitor pin to monitor optical power incident on the photo-diode.

All the receivers have wide wavelength response ranging from 1280nm to 1580nm.


Fiber Optic Receivers Catalog Listing - Click here


Fiber Optic Receivers Search
Not all fields are required.
Frequency Range Min to Max
Search range   WiderNarrowerExact
Frequency Tolerance (%)

Gain (dB) Min
Gain Variation (dB) +/- Max
Noise Figure (dB) Max
Input Power
at 1db Compression
(dBm) Min

Results Per Page



Fiber Optic Receiver Search By Model
Results Per Page


Our Fiber Optic Receivers are available in many different packages which include: Hermetic Kovar, Rack mount and outdoor enclosures. Our smallest fiber optic receivers are very compact (typically 1.0x0.7x0.4 inches) with self-contained control circuitry and uses Single Mode Fiber.

Our Fiber Optic Links are characterized using a specific transmitter and receiver. It is often possible to choose alternative transmitters and receivers to improve performance, or reduce cost.

Narda-MITEQ can customize the electrical specifications and packaging of all our Fiber Optic Receivers to meet your specific requirements. Let Narda-MITEQ be your custom fiber optic solution.

Be it higher gain or no-gain, low power consuming or high power delivering (up to +18 to +22dBm at the output). We also carry a line of ultra-wide band, high trans-impedance gain receivers with solid bands of 50KHz to 12.5GHz, or 70KHz to 20GHz.

Please contact Component Sales with any special requirements you may have: Tel: 631-231-9220

Narda-MITEQ Fiber Optic Links are backed by Narda-MITEQ's Warranty and most are available as RoHS Compliant components.
