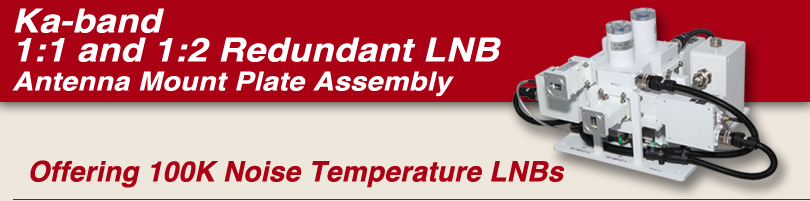

Product Highlight: Ka-band 1:1 & 1:2 Redundant LNB Antenna Mount Plate Assembly with 100 K Noise Temperature LNBs

Ka-Band Low Noise Block Converter series with exceptional Low Noise Figure of 2.2 dB at 20.2 GHz is now available for VSAT outdoor antenna mount applications. The LNBs include an integrated RF input waveguide isolator providing input VSWR of 1.3:1. The series covers all the Ka receive bands with either 500 MHz or 1 GHz bandwidth and 60 dB gain. The L-Band IF output is provided on a type N connector.

Also, the IF L-Band output can be provided on a fiber optic link using an internal fiber optic transmitter option with a companion FO remotely located receiver included with the FO IF option.

Narda-MITEQ offers additional 1:1 and 1:2 Redundant Block Converter Systems click here for additional information.

Datasheet:

1:1, Dual 1:1 and Redundant Low-Noise Amplifier Systems

(D-235.PDF)
