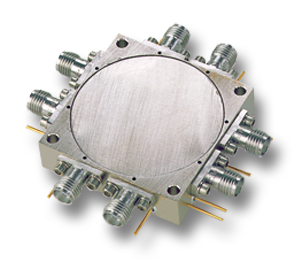

Model: SW7-005020AN3NM

Specifications
Frequency Min.500 MHz
# Throws7
# Poles1
Frequency Max.2000 MHz
# Poles1
# Throws7
Insertion Loss2.3 dB Max
Isolation65 dB Min
VSWR1.7 Min
RiseTime Typ.20 ns
Fall Time (Typical)20 ns
On/Off Time Typical150 ns
On/Off Time (Max)180 ns
Positive Supply Voltage5 V
Positive Supply Current185 mA
Negative Supply Voltage-15 V
Negative Supply Current185 mA
Reflective0
AbsorptiveTrue
Inverting Logic0
Input ConnectorSMA-M
Output ConnectorSMA-M
Input ConnectorSMA-M
Output ConnectorSMA-M
Documents for
SW7-005020AN3NM
Datasheet:
MITEQ-SW7 (PDF)

ECCN: EAR
