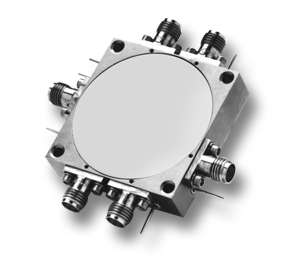

Model: SW5-040120AI4HM

Specifications
Frequency Min.4000 MHz
# Throws5
# Poles1
Frequency Max.12000 MHz
# Poles1
# Throws5
Insertion Loss2.9 dB Max
Isolation65 dB Min
VSWR1.8 Min
RiseTime Typ.20 ns
Fall Time (Typical)20 ns
On/Off Time Typical150 ns
On/Off Time (Max)180 ns
Positive Supply Voltage12 V
Positive Supply Current135 mA
Negative Supply Voltage-12 V
Negative Supply Current135 mA
Reflective0
AbsorptiveTrue
Inverting LogicTrue
Input ConnectorSMA-M
Output ConnectorSMA-M
Input ConnectorSMA-M
Output ConnectorSMA-M
Documents for
SW5-040120AI4HM
Datasheet:
MITEQ-SW5 (PDF)

ECCN: EAR
