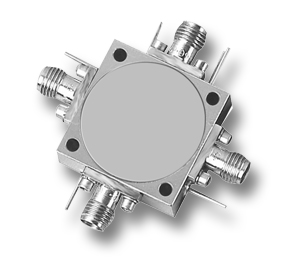

Model: SW3-010011AN3HM

Specifications
Frequency Min.1000 MHz
# Throws3
# Poles1
Frequency Max.1100 MHz
# Poles1
# Throws3
Insertion Loss1 dB Max
Isolation40 dB Min
VSWR1.2 Min
RiseTime Typ.500 ns
On/Off Time Typical700 ns
On/Off Time (Max)1000 ns
Positive Supply Voltage5 V
Positive Supply Current300 mA
Negative Supply Voltage-15 V
Negative Supply Current100 mA
Reflective0
AbsorptiveTrue
Inverting Logic0
Input ConnectorSMA-M
Output ConnectorSMA-M
Input ConnectorSMA-M
Output ConnectorSMA-M
Documents for
SW3-010011AN3HM
Datasheet:
MITEQ-SW3 (PDF)

ECCN: EAR
Similar Models
SW3-010011AN1HF
SW3-010011AN1HM
SW3-010011AN1NF
SW3-010011AN1NM
SW3-010011AN2HF
SW3-010011AN2HM
SW3-010011AN2NF
SW3-010011AN2NM
SW3-010011AN3HF
SW3-010011AN3NF
SW3-010011AN3NM
SW3-010011AN4HF
SW3-010011AN4HM
SW3-010011AN4NM
SW3-010011AN5HF
SW3-010011AN5HM
SW3-010011AN5NF
SW3-010011AN5NM
SW3-010180AI1HF
SW3-010180AI1HM

Please review the product PDF which contains the full and complete specifications.
For conflicts between the information on this page and the product PDF, the product PDF takes precedence.
