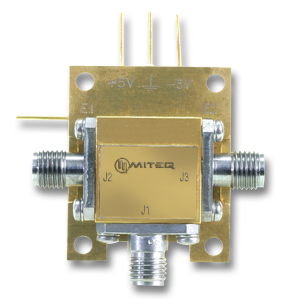

Model: SW2-200305RD2NF

Specifications
Frequency Min.20000 MHz
# Throws2
# Poles1
Frequency Max.30500 MHz
# Poles1
# Throws2
Insertion Loss3 dB Max
Isolation30 dB Min
VSWR2 Min
On/Off Time Typical10 ns
On/Off Time (Max)30 ns
Positive Supply Voltage5 V
Negative Supply Voltage-5 V
ReflectiveTrue
Absorptive0
Inverting Logic0
Documents for
SW2-200305RD2NF
Datasheet:
MITEQ-SW2-200305RD2NF (PDF)
Outline Drawing:
184572 (PDF)

ECCN: EAR


Please review the product PDF which contains the full and complete specifications.
For conflicts between the information on this page and the product PDF, the product PDF takes precedence.
