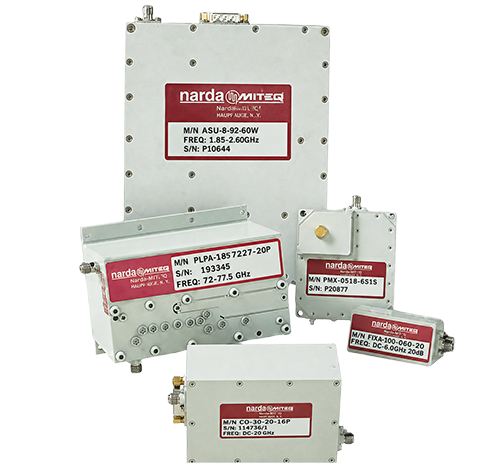

Frequency Synthesizers
Narda-MITEQ designs and manufactures various types of Frequency Synthesizers, including sources based on phase-locked-loop (PLL) technology to lock the phase of a voltage-controlled oscillator (VCO) to that of an inherently more stable reference source, such as a temperature-compensated crystal oscillator (TCXO) or an oven-controlled crystal oscillator (OCXO).
Such synthesizers can be designed with a single loop for optimal frequency switching speed, or with multiple loops when lower noise performance is required. In essence, they can be called integer-N synthesizers, where N is the multiplication factor used to determine the output frequency as a multiple of the reference source frequency.
SLS2(A) Series (Phase Locked Synthesizer)
(SLS2 Datasheet (PDF))
MOS Series (Wideband Panel Controlled Phase Locked Synthesizer)
(MOS Datasheet(PDF))
Software Downloads:
Narda-MITEQ Synthesizer Control (zip)
Obsolete Synthesizer models
The following products are no longer available from Narda-MITEQ (as of Dec 2022):
| OBS Models | Replacement Models |
|---|---|
| BTE | SLS2 or SLS2A |
| DTS | SLS2 or SLS2A |
| EFS | SLS2 or SLS2A |
| MFS | SLS2 or SLS2A |
| SLFS | SLS2 or SLS2A |
| SLS | SLS2 or SLS2A |
The following options are available on catalog models. Please contact the factory for help in configuring part numbers.
- Internal Reference
- Extended Temperature
- Higher Output Power
Narda-MITEQ can offer customized solutions that meet your specific requirements.
Please contact Component Sales with any special requirements you may have:
Tel: 631-231-9220
Narda-MITEQ Frequency Synthesizers are backed by Narda-MITEQ's Warranty and most are available as RoHS Compliant components.
